Where should the shunt resistor be connected?

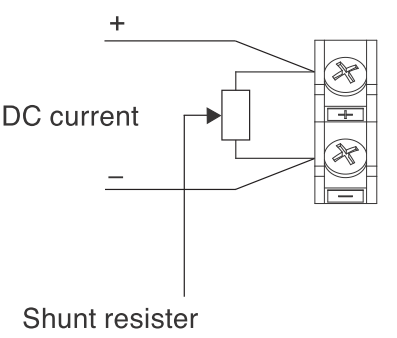

Connect to the + and – analog terminals as shown in the figure.
