GL980_2000-APS– Application software for PC –
There are two types standard software for GL2000 and GL980, the PC software GL980_2000-APS can control GL2000 or GL980 and display measured data, the high-performance software GL-Connection has advanced functions and be used with other device of GL series.
PC measurement with standard PC software included (GL980_2000-APS)
Multiple measurement screens including Y-T waveform, XY chart
Y-T display
Recorded signal is displayed in waveform (Y-T) and digital value for each channel.
![Y-T display](https://www.graphteccorp.com/wp-content/uploads/soft-gl9820aps_img001.jpg)
Y-T display (Zone mode)
Screen is divided into multiple zone, and channels can be assigned to each zone.
![Y-T display (Zone mode)](https://www.graphteccorp.com/wp-content/uploads/soft-gl9820aps_img002.jpg)
XY display
Four groups of XY charts are displayed.
![XY display](https://www.graphteccorp.com/wp-content/uploads/soft-gl9820aps_img003.jpg)
Easily Connect to the GL2000/GL980 with Quick Set Up Conditions
![Easily Connect to the GL2000/GL980 with Quick Set Up Conditions](https://www.graphteccorp.com/wp-content/uploads/soft-gl9820aps_img004.jpg)
Convenient features from the GL980_2000-APS software
File combine and bind function
- Superimpose: Data or file recorded on another unit or time can be imported as additional channels when using a SUPERIMPOSE function.
- Link: Captured data in multiple files are connected and saved as new file. It is helpful in reviewing data captured with relay mode.
* Measurement parameters of each file must be the same.
Direct Excel function
The GL980_2000-APS software executes recorded data into a file on PC in real time and exports to a specified Excel file at the same time.
This is a valuable tool in creating report requiring post-process calculation with Excel software.
Printing function
The waveform of the playback data can be printed using a default printer. Printing range of the waveform can be set between cursors or all waveforms.

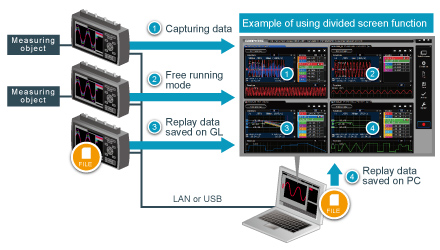

Advanced software GL-Connection (version 2.0)
Major features
- Supports connection with other GL units (*) simultaneously
- Supports up to 20 GL units (*)
- Screen division function: 4 screens
- FFT analysis function
- GL220, GL240, GL820, GL840 series, GL900 series, GL7000 series, GL980 and GL2000 can be connected.
- Ethernet (LAN) and USB can be mixed for connection between GL unit and PC.
![GL-Connection](https://www.graphteccorp.com/wp-content/uploads/soft-gl9820aps_img005.jpg)
