Engineered to Achieve High Performance with Affordable Price

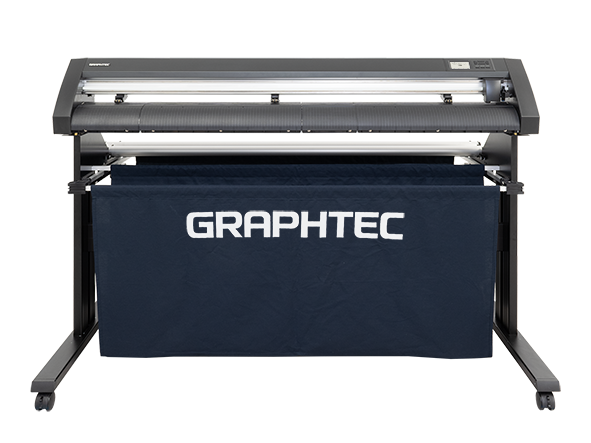

The Graphtec CE8000 Series is the perfect solution for those looking to increase production with greater efficiency for signage graphics, print & cut graphics, pop & packaging, automotive markets and many more. The rigidity has been enhanced compared to the previous model CE7000, which its feeding and cutting quality have also been improved. Wireless LAN has been newly available to enhance the convenience and flexibility. Advanced Registration Mark Sensing System (ARMS) is installed as CE7000.
Pressure adjustable push rollers and newly developed Media Set Assist function help to hold your media stable and prevents from feeding trouble. By using an optional basket, stability in long roll media cuts can be achieved.
Data Link Function (Barcode Data Management/Continuous Cutting)
By reading the Graphtec original Barcode, CE8000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
Only FAT32 is supported. Please note that NTFS and exFAT are not available.
Continuous Cut
Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.
Data output via USB flash memory without PC
When cutting data designed with Cutting Master 5 or Graphtec Studio 2 are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
Only FAT32 is supported. Please note that NTFS and exFAT are not available.
Perforation cutting ability
Carrier Sheet Table (OPH-A45)
For cutting sheet media, we line-up the carrier sheet table as an optional item. It is attachable to CE8000-40 / 60.
Software
Standard included software for designing your cutting data and operating cutting plotter.
Graphtec Studio 2, Cutting Master 5, Windows Driver
Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
HP-GLTM is a registered trademark of Hewlett-Packard Company.
Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
